Lifeline system on post with vertical fixation
Lifeline systems on post with vertical fixation approved for 4 users.

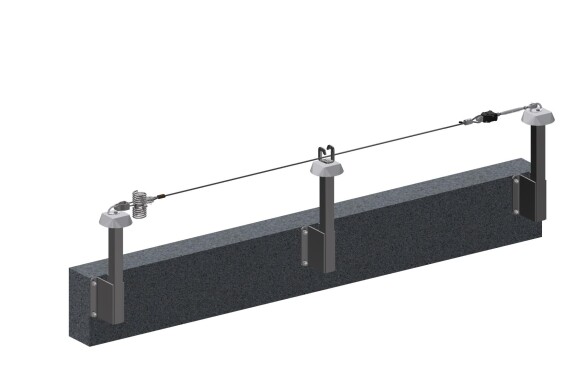

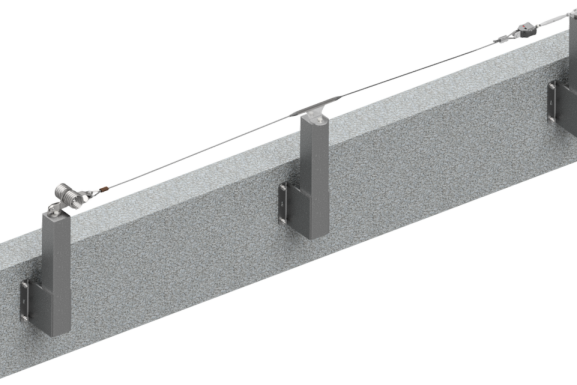

The lifeline system on posts with vertical fixation is an horizontal anchor device specifically designed for installation on vertical walls of buildings. This system allows workers to move continuously along the lifeline, passing through intermediate supports without the need to disconnect, thereby ensuring safety and efficiency in their tasks.
With an intuitive design, this device is easy to use and install, providing a practical and effective solution for fall protection. Additionally, it strictly complies with the EN795:2012 Class C standard, ensuring it meets the highest safety and quality standards.
Highlighted Technical Features
- Type of Fixing: Utilizes 4 M12 chemical anchors or, in the case of metallic structures, 4 M12 screws to ensure a robust and secure attachment.
- Oblong Holes: The holes are designed in an oblong shape to facilitate installation, allowing adjustments that optimize the accuracy and efficiency of the process.
- Maximum Spans: Allows spans of up to 15 meters between posts.
- Structural Requirements: For installation in concrete, a minimum thickness of 160mm is required. In metallic structures, it is recommended to use IPE80 profiles to ensure the integrity and safety of the system.
Versatility and Customization
The intermediate points of the lifeline are designed with exceptional versatility, offering manual passage options for shorter distances or automatic passage for enhanced comfort and efficiency during operations. This flexibility ensures that workers can perform their tasks securely and productively, adapting to various work environments.
The post is available in a standard height of 630mm or can be custom-made according to the specific needs of the customer.
