Lifeline on absorbing stands for corrugated sheet roofs
Lifeline on absorbing stands for corrugated sheet roofs approved for 4 users.

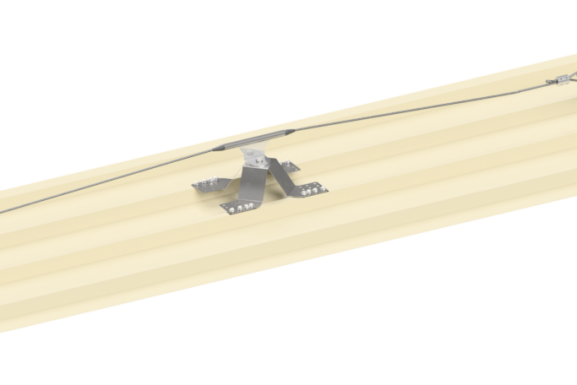

Discover the Lifeline on absorbing stands, an innovative and efficient safety solution designed to ensure the protection of workers on corrugated sheet roofs and sandwich panels. This horizontal anchor device not only offers a quick and practical installation but also eliminates the need for cuts in the roofing covering, making the process much more streamlined and reducing the risk of infiltrations.
With the capacity for up to 4 workers simultaneously, this device allows workers to move confidently along its entire length. The passage through intermediate supports is done with complete safety, eliminating the risk of disconnection. This device is not only easy to operate but also strictly complies with EN795:2012, Class C, ensuring complete compliance with the safety standards.
Highlighted Technical Features
-
Flexible Installation: Designed to adapt to sheets with a minimum thickness of 0.50mm, this lifeline offers versatile application, making it ideal for various types of roofs.
-
Exceptional Compatibility: Capable of supporting wave distances of 250mm or 333mm, this system also offers customizations for distances of 210mm or other specifications based on customer needs, ensuring a tailored solution.
-
Secure Fixing: Equipped with 16 self-tapping screws, which ensure a robust and reliable fixation, enhancing the system's durability and providing peace of mind during operations.
-
Maximum Spans: Structurally designed to support spans of up to 10m between posts, allowing greater freedom of movement and facilitating access to hard-to-reach areas.
Versatility and Customization
The intermediate points of the lifeline are designed with exceptional versatility, offering manual passage options for shorter distances or automatic passage for enhanced comfort and efficiency during operations. This flexibility ensures that workers can perform their tasks securely and productively, adapting to various work environments.
The system supports wave distances of 250mm or 333mm, with the option for custom configurations at 210mm or tailored to meet specific customer requirements, ensuring a perfect fit for any project.
Additionally, it comes with a thermolacquered finish in a RAL color of your choice, allowing the system to blend aesthetically into its surroundings while maintaining its robust functionality.
