Lifeline System on Omega Stands for Corrugated Sheet

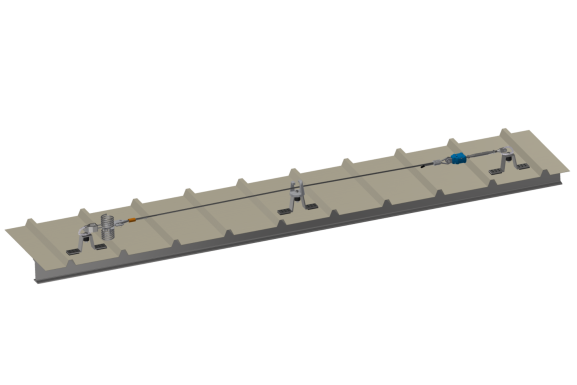

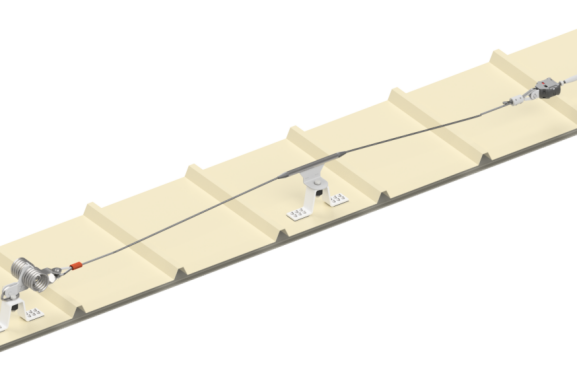

Lifeline system on omega stands for corrugated sheet, directly attached to the metal structure approved for 4 users
Discover the Lifeline on omega stands, an efficient safety solution designed to ensure the protection of workers on simple corrugated sheet roofs to be directly fixede directly to de supporting structure.
With the capacity for up to 4 workers simultaneously, this device allows workers to move confidently along its entire length. The passage through intermediate supports is done with complete safety, eliminating the risk of disconnection. This device is not only easy to operate but also strictly complies with EN795:2012, Class C, ensuring complete compliance with the safety standards.
Highlighted Technical Features
-
Flexible Installation: Designed to be attached directly to a structure whose profile is at least an IPE 80 or a C or Z profile with a minimum thickness of 2mm
-
Secure Fixing: Equipped with 12 self-tapping screws, which ensure a robust and reliable fixation, enhancing the system's durability and providing peace of mind during operations.
-
Maximum Spans: Structurally designed to support spans of up to 10m between posts, allowing greater freedom of movement and facilitating access to hard-to-reach areas.
Versatility and Customization
The intermediate points of the lifeline are designed with exceptional versatility, offering manual passage options for shorter distances or automatic passage for enhanced comfort and efficiency during operations. This flexibility ensures that workers can perform their tasks securely and productively, adapting to various work environments.
Additionally, it comes with a thermolacquered finish in a RAL color of your choice, allowing the system to blend aesthetically into its surroundings while maintaining its robust functionality.
