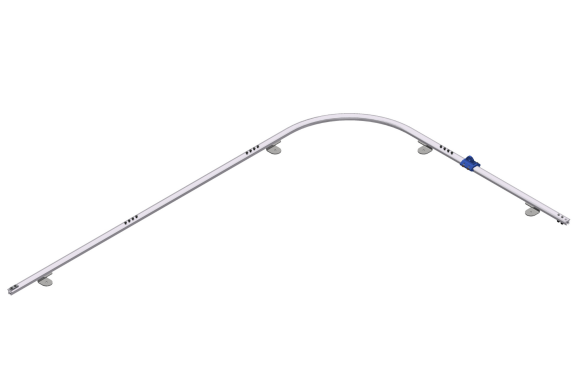

Rigid Horizontal lifeline
Rigid horizontal lifeline system (rail) approved for 4 users
The horizontal lifeline system on rail is a fall protection device designed to ensure maximum freedom of movement with complete safety. Composed of an anodized aluminum profile and an aluminum trolley equipped with 4 bearings, this system allows for smooth sliding along the rail, without intermediate obstacles, providing the user with great mobility. It strictly complies with the EN 795 Class D standard, ensuring the highest standards of fall protection.
Highlighted Technical Features
-
Fixation Points: Supports positioned every 3m, adaptable to different bases. For overhead configurations, supports must be installed every 1.5m.
-
Flexible Attachment: Components can be attached in various ways, including back plates, clamps, or mounted on a welded plate, depending on the type of structure.
-
Versatile Installation: The system is designed to be installed in any position—whether on horizontal surfaces vertical walls, or in overhead configurations.
Versatility and Customization
- Custom Curvature: The rail can be custom-bent to fit the specific needs of the project.
